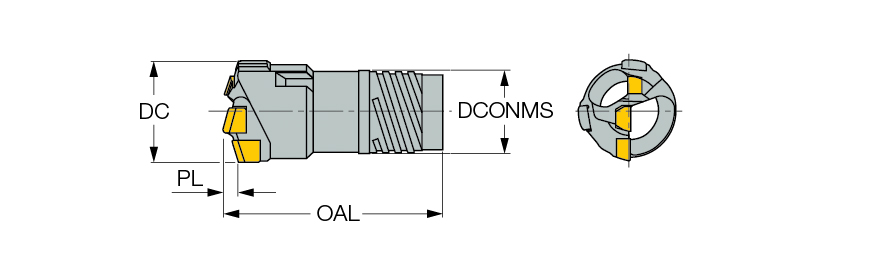

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 58.41 mm |
| Connection Diameter Machine Side (DCONMS) | 47 mm | Cutting Diameter Maximum (DCX) | 60.6 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 84 mm | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I16 | Unit | M |
Product Features

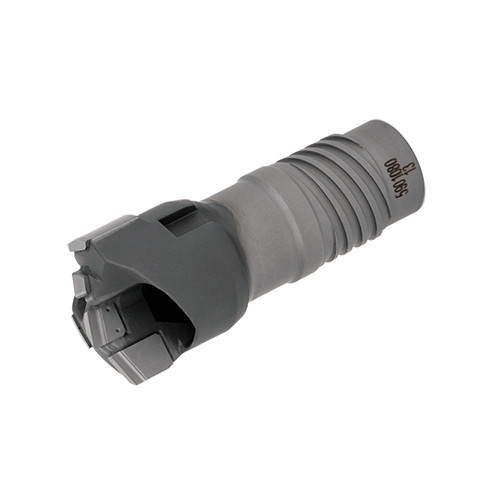

| Family Description | Deep single tube drills with external 2 and 4 start thread connections and 2 or 3 brazed tips. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P, K, M, N materials Ordering example: DSD-E3 43.30 DT-PO For user guide and quotation form, click on More Info |
