TPHN M-20X2.5-W HS

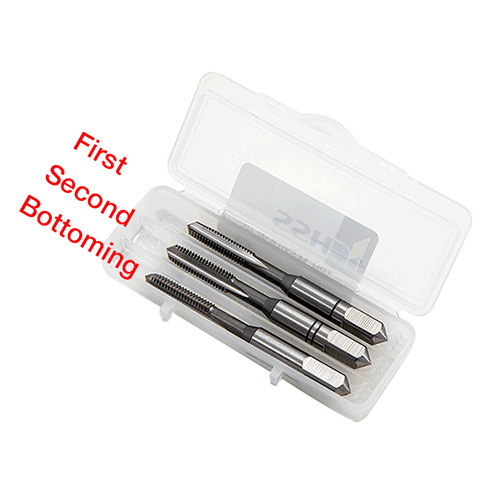

DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, second operation, and bottoming operation.

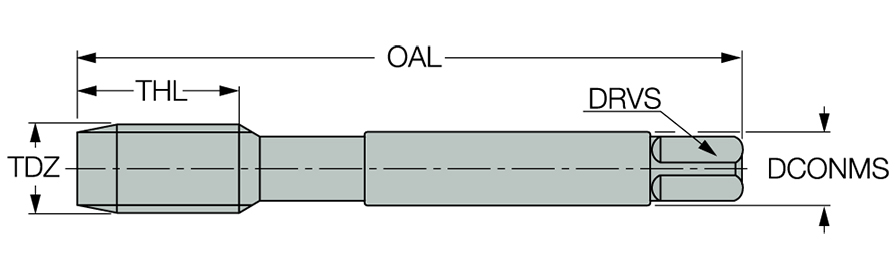

| Thread Diameter Size (TDZ) | M20 | Measurement Type | Metric |
| Standard | DIN 352 | Thread Cutting Part Length (THL) | 34 mm |
| Tool Type | Hand Taps | Grade | HS |
| Overall Length (OAL) | 95 mm | Thread Pitch (TP) | 2.5 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Thread Size | M20 × 2.5 |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Cutting Edge Material | HSS | Unit | M |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
Product Features
| Family Description | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, second operation, and bottoming operation. | COO | Hungary |
| Remarks | NOTE: Each set contains 2 or 3 taps |
Shipping Info
Weight per item
0.4450
