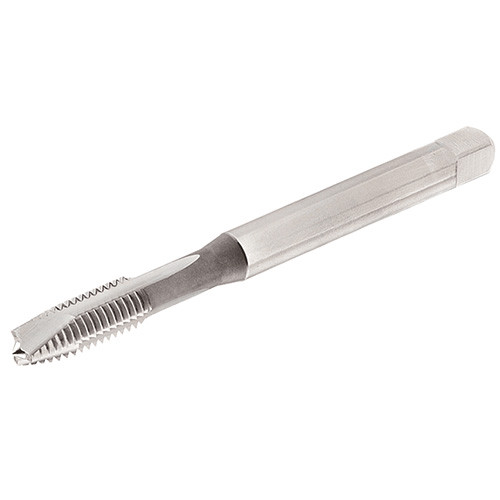

TPGN M-6X1.0-A HEDLC
DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Aluminum

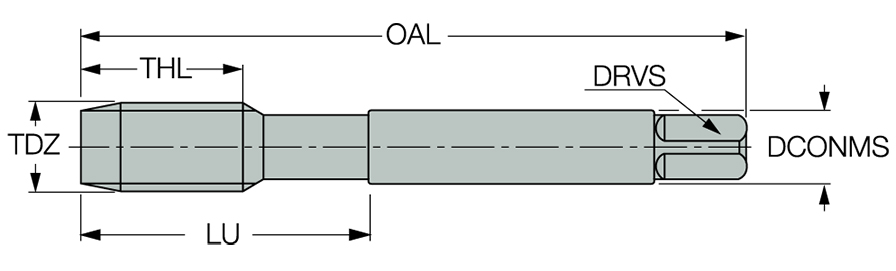

| Thread Size | M6 × 1 | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Diameter Size (TDZ) | M6 | Thread Cutting Part Length (THL) | 16 mm |
| Thread Pitch (TP) | 1 mm | Drive Size (DRVS) | 4.9 mm |
| Usable Length (LU) | 30 mm | Measurement Type | Metric |
| Overall Length (OAL) | 80 mm | Grade | HEDLC |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Tool Type | Machine Blind Hole Taps | Unit | M |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Aluminum | COO | Hungary |
Shipping Info
Weight per item
0.1360
