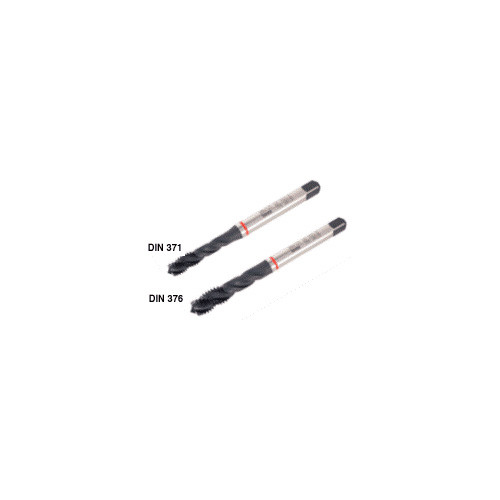

TPSN M-18X2.5-S PMST
PM Right-Hand 40° Spiral Flute Machine Taps - ISO Metric Coarse Threads, According to DIN 13, for Stainless Steel

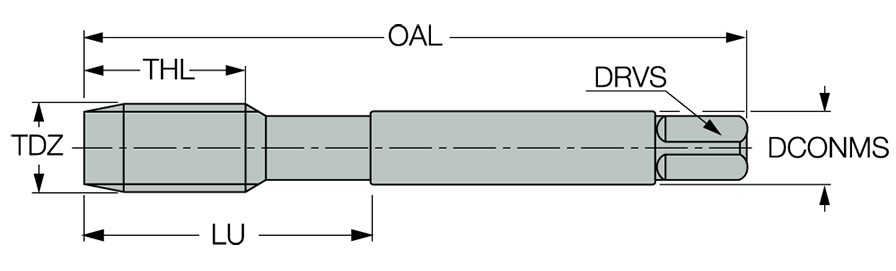

| Thread Diameter Size (TDZ) | M18 | Coating | Steam tempered |
| Thread Pitch (TP) | 2.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Grade | PMST |
| Thread Cutting Part Length (THL) | 25 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Body Material | HSS |
| Flute Count (NOF) | 4 | Drive Size (DRVS) | 11 mm |
| Standard | DIN 376 | Thread Size | M18 × 2.5 |
| Tool Type | Machine Blind Hole Taps | Unit | M |
Product Features
| Family Description | PM Right-Hand 40° Spiral Flute Machine Taps - ISO Metric Coarse Threads, According to DIN 13, for Stainless Steel | COO | Hungary |
Shipping Info
Weight per item
0.1470
