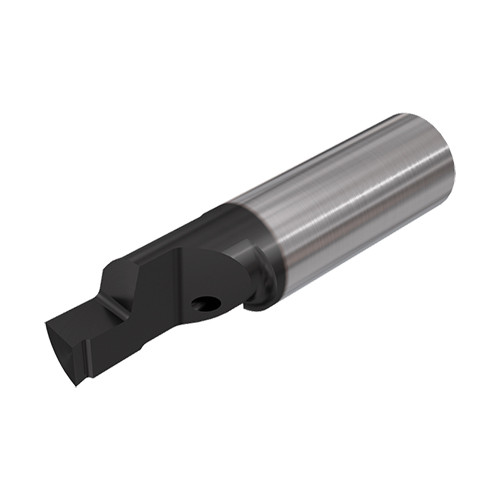

PICJ RF10D8T1.5-20-7 IC908
Inserts with an internal coolant channels for face grooving for Dmin 6 mm
| Connection Diameter Machine Side (DCONMS) | 7 mm | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 1 mm | Max. Face Grooving Feed (ffg(max)) | 0.04 mm/rev |
| Cutting Depth Maximum (CDX) | 1.5 mm | Min. Face Grooving Feed (ffg(min)) | 0.01 mm/rev |
| Overall Length (OAL) | 35 mm | Axial Groove Outside Diameter Minimum (DAXN) | 8 mm |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 5.9 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Overhang Minimum (OHN) | 21 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Application | | Face Grooving | Int. Face Grooving | |
Product Features
| Family Description | Inserts with an internal coolant channels for face grooving for Dmin 6 mm | FamilyName | PICJ R/LF-D6/8-T (Face Grooving) |
| Remarks | Only right-hand inserts are available as standard All inserts are with sharp corners PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0160
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICJ R/LF-D6/8-T (Face Grooving)
BrandName
Iscar
