| Cutting Diameter (DC) | 38 mm | Measurement Type | Metric |
| Applicable Material | | Steel | | Point Length (PL) | 5.03 mm |
| Application | | Drilling | | Point Angle (SIG) | 137 Degrees |
| Grade | IC954 | Coating | TiAlN |
| Tool Type | Drilling Heads | Corner Chamfer Width (CHW) | 1 mm |
| Insert Seat Size Code (SSC) | 38.0 | Body Material | Carbide |
| Functional Length (LF) | 14.1 mm | Unit | M |
Product Features

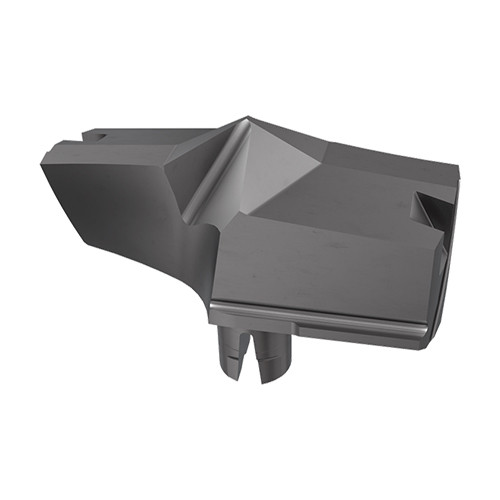

| Family Description | Exchangeable DFN Drill Heads for machining construction beams and structural steel materials | COO | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
Weight per item
0.0880
