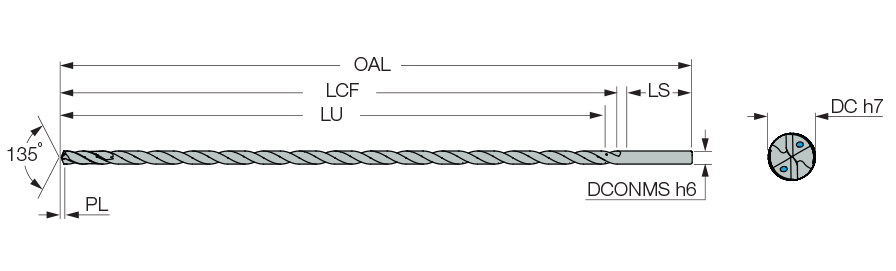

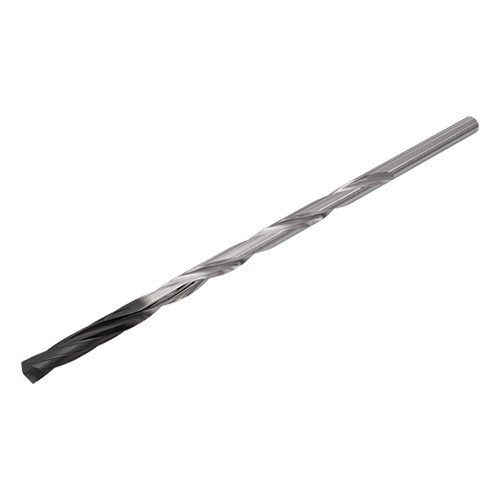

SCD 045-083-060 IXC16 IC908
| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 83 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 90 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 130 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.93 mm | Body Material | Carbide |
| Number of Teeth | 2 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 36 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling Depth 16xD, for machining ISO K materials | COO | USA |
| Remarks | Based on DIN 6537 standard |
Shipping Info
Weight per item
0.0530
