DDC-EC 112.00-123.99

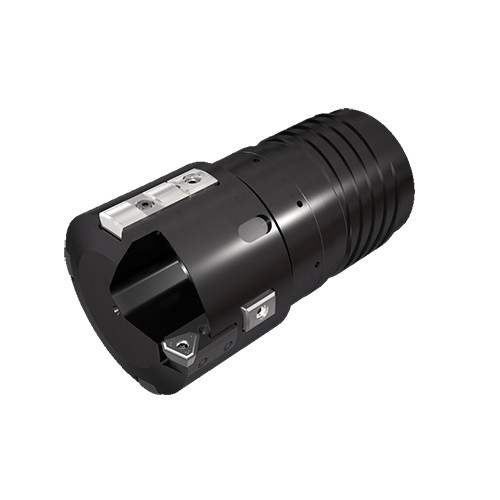

Double Tube Counterboring Drills with Outer 4-Start Thread Connection, Cartridges and Adjustable Diameter (40-184mm dia.).

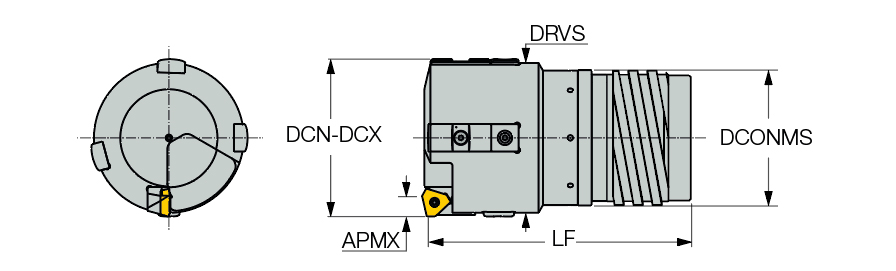

| Connection Diameter Machine Side (DCONMS) | 101 mm | Application | | Deep Drilling | |
| Flute Count (NOF) | 1 | Depth of Cut Maximum (APMX) | 10.4 mm |
| Cutting Diameter Maximum (DCX) | 123.99 mm | Drive Size (DRVS) | 119 mm |
| Cutting Diameter Minimum (DCN) | 112 mm | Functional Length (LF) | 205 mm |
| Body Material | Steel | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Double Tube Counterboring Drills with Outer 4-Start Thread Connection, Cartridges and Adjustable Diameter (40-184mm dia.). | COO | Japan |

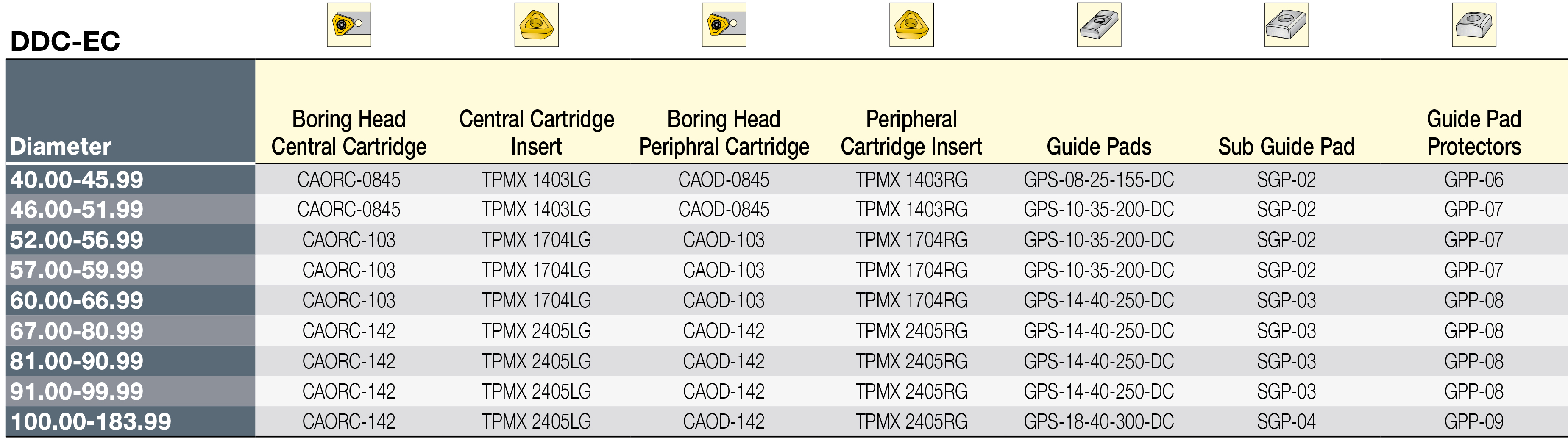

| Remarks | For spare parts and insert information, click on More Info Ordering example: DDC-EC 130.35 |
