TPS MF-26X1.5-M HE

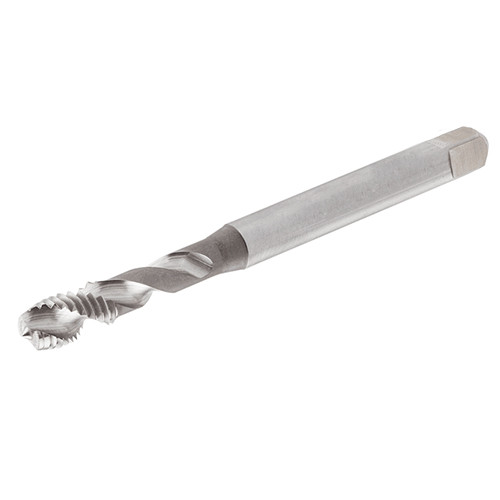

DIN 13 HSS spiral flute machine taps - metric fine threads , for a wide range of materials.
| Thread Diameter Size (TDZ) | M26 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 1.5 mm | Coating | Uncoated |
| Thread Standard | THFT | | Measurement Type | Metric |
| Overall Length (OAL) | 140 mm | Grade | HE |
| Thread Cutting Part Length (THL) | 20 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 14.5 mm |
| Cutting Edge Material | HSS | Thread Size | M26 × 1.5 |
| Standard | DIN 374 | Unit | M |
Product Features
| Family Description | DIN 13 HSS spiral flute machine taps - metric fine threads , for a wide range of materials. | COO | Korea |
