SCD 040-029-060 AP5N IC908
DIN 6537 solid carbide drills without coolant holes, drilling depth 5xD.

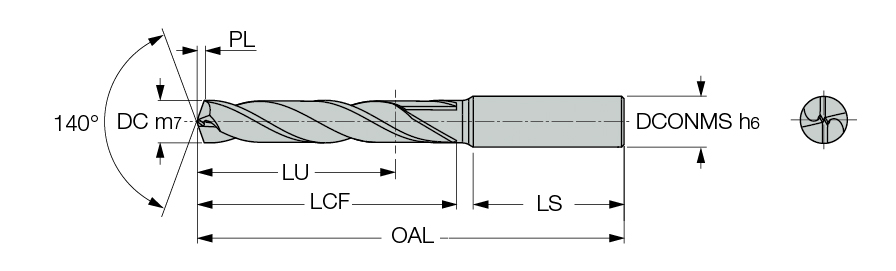

| Drill Bit Size / Cutting Diameter (DC) | 4 mm | Grade | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4 mm | Measurement Type | Metric |
| Coating | TiAlN | Usable Length (LU) | 29 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 37 mm |
| Application | | Drilling | | Overall Length (OAL) | 74 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 35 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Edge Material | Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills | Unit | M |
Product Features
| Family Description | DIN 6537 solid carbide drills without coolant holes, drilling depth 5xD. | COO | Korea |
Shipping Info
Weight per item
0.0230
