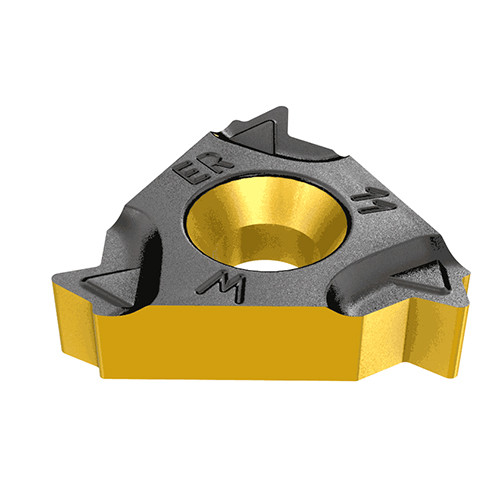

16ER 12 W IC908
External Whitworth (BSW, BSF, BSP), full profile laydown threading inserts. ER/L - Ground periphery and rake, ERB - With a chipformer and peripherally ground, ERM - With a chipformer. Application: fittings and pipe couplings.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Cutting Item Count (CICT) | 1 |
| Threads per Inch (TPI) | 12 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.27 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | WH55 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Profile Distance EY (PDY) | 1.2 mm |
Product Features
| Family Description | External Whitworth (BSW, BSF, BSP), full profile laydown threading inserts. ER/L - Ground periphery and rake, ERB - With a chipformer and peripherally ground, ERM - With a chipformer. Application: fittings and pipe couplings. | FamilyName | ER/L-W |
| Remarks | For Insert Identification System, click on More Info For threading between walls use GRIP-type insert TIP-BSW. Tolerance: Medium Class | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0070
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-W
BrandName
Iscar
