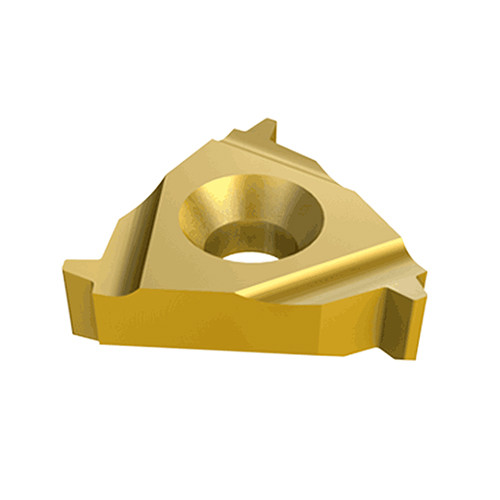

22IR 6 ACME IC50M
Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |

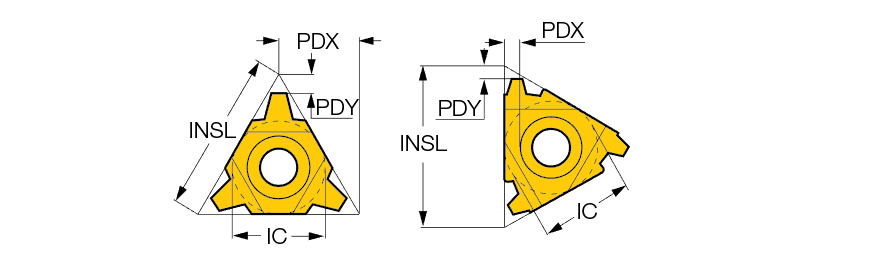

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 6 | Measurement Type | Metric |
| Grade | IC50M | Body Material | Carbide |
| Coating | Uncoated | Thread Form Type (THFT) | AC29 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Internal Threading lay down | | Profile Distance EY (PDY) | 1.9 mm |
Product Features
| Family Description | Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws. | FamilyName | IR/L-ACME |
| Remarks | For Insert Identification System, click on More Info ACME ASME/ANSI B1.5-1988 Class 3G | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0105
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-ACME
BrandName
Iscar
