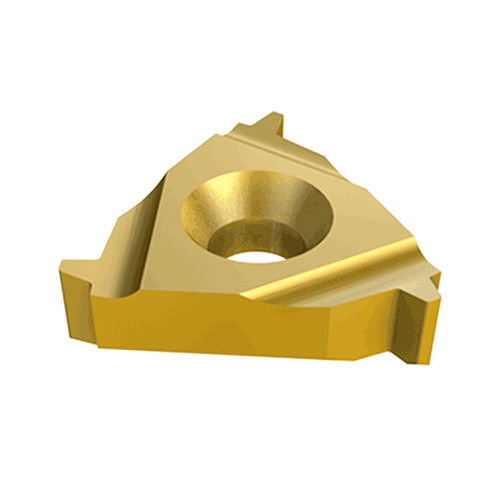

22ER 5 TR IC50M
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |

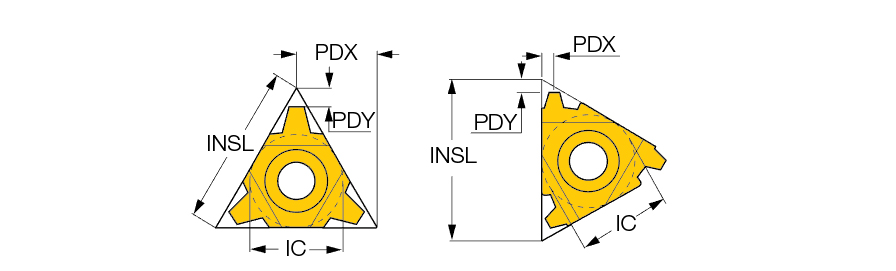

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Thread Pitch (TP) | 5 mm | Measurement Type | Metric |
| Corner Radius (RE) | 0.2 mm | Body Material | Carbide |
| Grade | IC50M | Thread Form Type (THFT) | TR30 |
| Coating | Uncoated | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 2 mm |
| Application | | External Threading | |
Product Features
| Family Description | External trapezoid shaped, DIN 103 laydown threading inserts, for feed screws. | FamilyName | ER/L-TR |
| Remarks | For Insert Identification System, click on More Info DIN 103 04/1977,1502901/1977 Class 7e | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0104
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-TR
BrandName
Iscar
