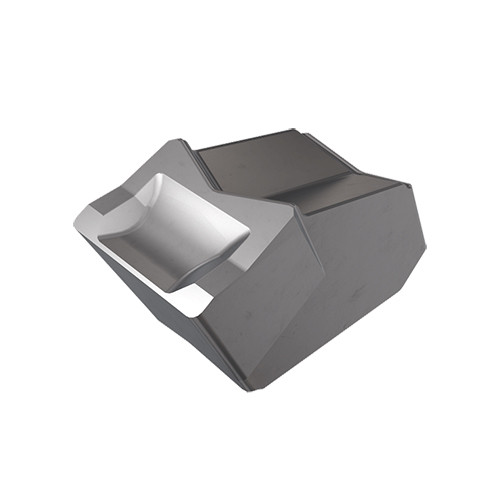

GFN 2 IC354
First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds.

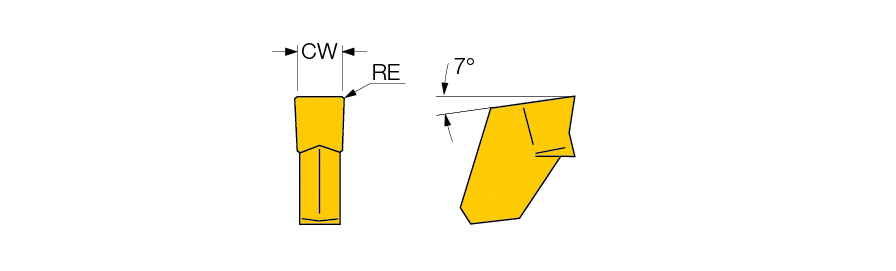

| Cutting Width (CW) | 2.2 mm | Max. Grooving Feed (fg(max)) | 0.16 mm/rev |
| Corner Radius (RE) | 0.16 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC354 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.03 mm |
| Application | | Ext. Grooving | Int. Grooving | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | FamilyName | GFN-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0012
Name
Parting Off Indexable Inserts
FamilyName
GFN-C
BrandName
Iscar
