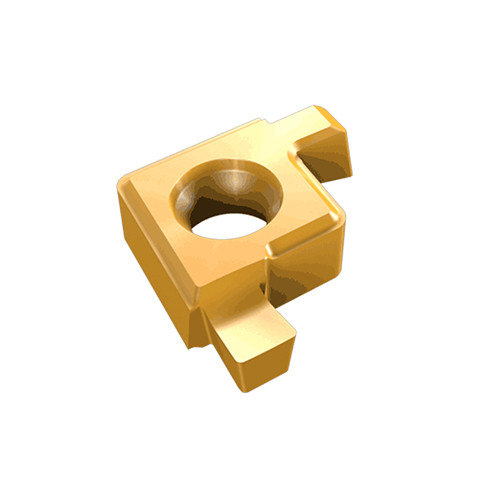

XCMT 07R-252002-MG IC808G
Two cutting edged internal grooving inserts for DR-MF multifunction tools.

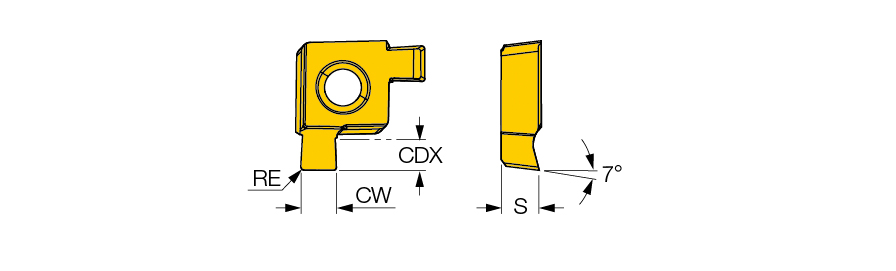

| Cutting Width (CW) | 2.5 mm | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.41 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Overall Length (OAL) | 7.5 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Depth Maximum (CDX) | 2 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808G | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
Product Features
| Family Description | Two cutting edged internal grooving inserts for DR-MF multifunction tools. | FamilyName | XCMT-MG |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0038
Name
Parting Off Indexable Inserts
FamilyName
XCMT-MG
BrandName
Iscar
