ICM 056 IC908

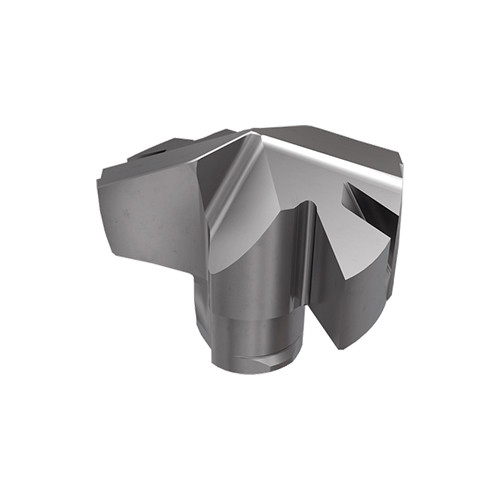

Exchangeable drilling heads for DCN drills, for machining ISO M and ISO S materials. The drill head features a T-land on the cutting edge, available in increments of 0.1 mm.

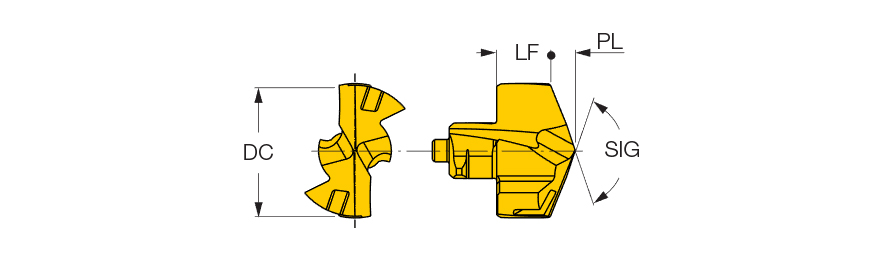

| Cutting Diameter (DC) | 5.6 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 3.85 mm |
| Application | | Drilling | | Point Length (PL) | 0.92 mm |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 5.5 | Body Material | Carbide |
| Functional Length (LF) | 2.93 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO M and ISO S materials. The drill head features a T-land on the cutting edge, available in increments of 0.1 mm. | COO | Israel |
Shipping Info
Weight per item
0.0095
