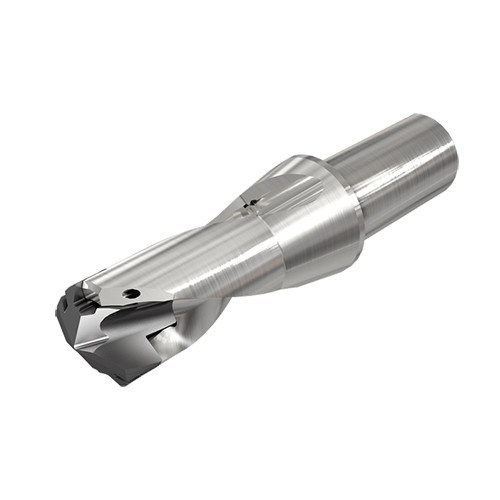

DCN 180-027-25A-1.5D
SUMOCHAM 1.5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

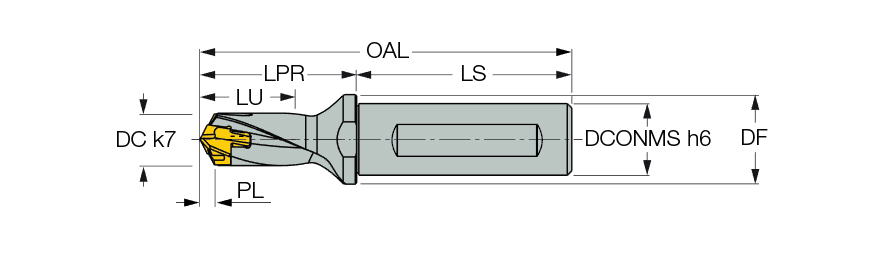

| Cutting Diameter (DC) | 18 mm | Overall Length (OAL) | 111.5 mm |
| Usable Length (LU) | 29.73 mm | Shank Length (LS) | 56 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 180 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 2.73 mm |
| Insert Seat Size Code (SSC) | 18.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 18 mm | Flange Diameter (DF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 18.99 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 55.5 mm | Unit | M |
| Functional Length (LF) | 52.22 mm |
Product Features
| Family Description | SUMOCHAM 1.5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3420
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
