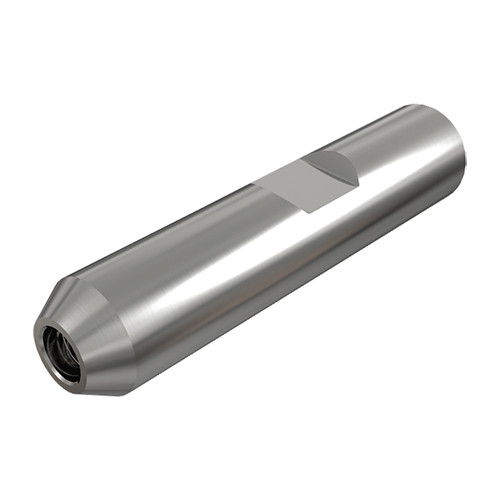

MM S-A-L070-C20T05
MULTI-MASTER shanks for interchangeable milling heads.

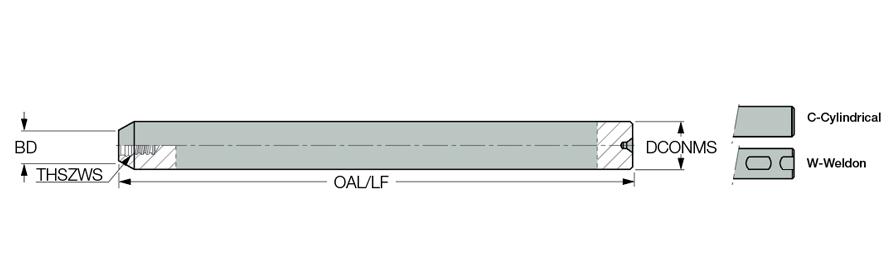

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T05 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Rotational Speed Maximum (RPMX) | 60000 Rev/min |
| Overall Length (OAL) | 70 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 7.6 mm | Unit | M |
| Functional Length (LF) | 70 mm |
Product Features
| Family Description | MULTI-MASTER shanks for interchangeable milling heads. | FamilyName | MM S-A (straight shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1690
Name
Solid End Mill Shanks
FamilyName
MM S-A (straight shanks)
BrandName
Iscar
