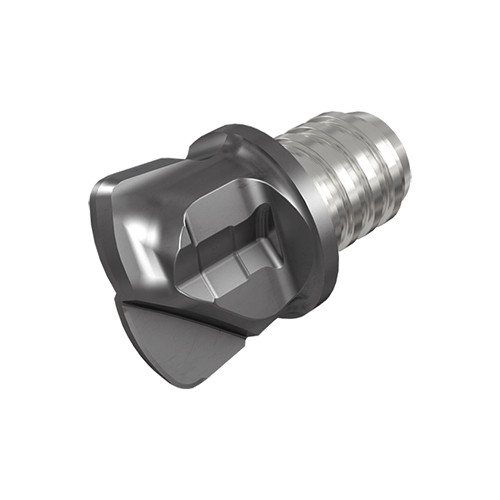

MM FF100R1.5-L12-2T06 IC908
Interchangeable 2 flute FEEDMILL solid carbide heads for milling at very high feeds and small D.O.C.
| Application | | Drill Mill | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | | Coating | TiAlN |

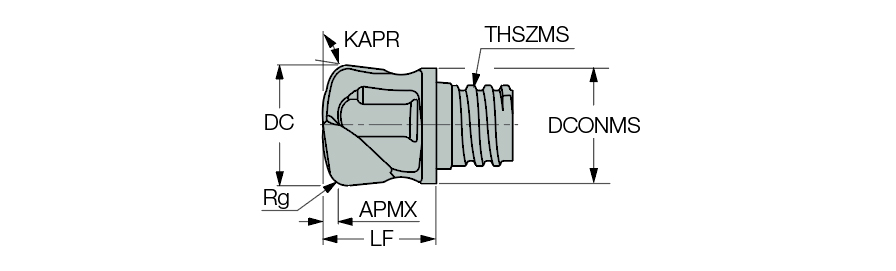

| Cutting Diameter (DC) | 10 mm | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Maximum Feed per Tooth (fz(max)) | 0.6 mm/tooth |
| Corner Radius (RE) | 2 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Ramping Angle Maximum (RMPX) | 7 Degrees |
| Cutting Diameter Maximum (DCX) | 10 mm | Tool Type | Fast Feed Solid Endmill |
| Depth of Cut Maximum (APMX) | 0.6 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 12.5 mm | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |
| Overall Length (OAL) | 19.15 mm | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable 2 flute FEEDMILL solid carbide heads for milling at very high feeds and small D.O.C. | FamilyName | MM FF |
| Remarks | For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0165
Name
Solid End Mill Heads
FamilyName
MM FF
BrandName
Iscar
