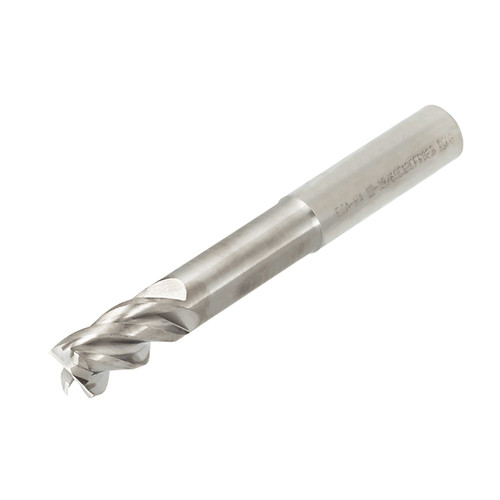

ECA-H4 20-40/60C20CFR02 IC08
Chatter free 4 flute solid carbide endmills with 39-41° different helix and long neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing.

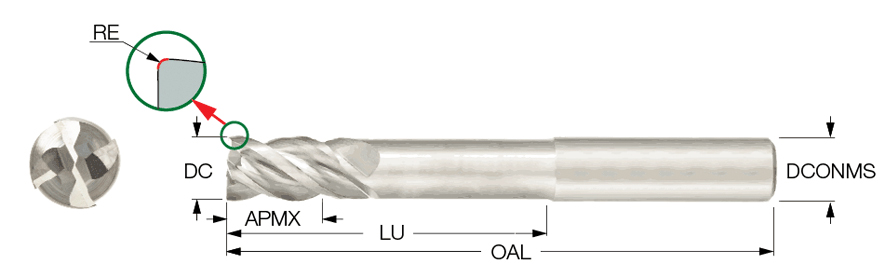

| Cutting Diameter (DC) | 20 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 40 mm | Neck Diameter (DN) | 19 mm |
| Overall Length (OAL) | 110 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.14 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 60 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.2 mm | Unit | M |
Product Features
| Family Description | Chatter free 4 flute solid carbide endmills with 39-41° different helix and long neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing. | FamilyName | ECA-H4-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4050
Name
Square & Corner Radius End Mills
FamilyName
ECA-H4-CF
BrandName
Iscar
