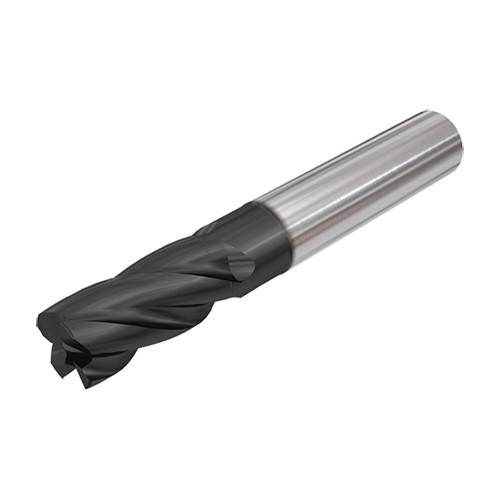

ECI-H4R 625-1.25/1.9C03CF IC900
4 flute endmills with different helix (35° & 37°) and variable pitch for chatter dampening with assorted radii and relieved shanks. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD.

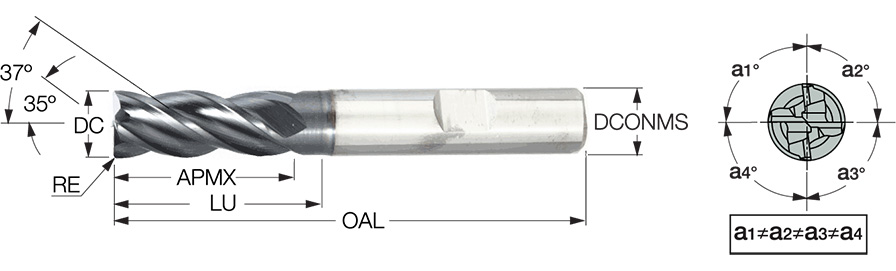

| Cutting Diameter (DC) | 5/8″ | Grade | IC900 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Neck Diameter (DN) | 0.61″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 4″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0055 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.0025 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.625″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1.87″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0.03″ | Unit | I |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
Product Features
| Family Description | 4 flute endmills with different helix (35° & 37°) and variable pitch for chatter dampening with assorted radii and relieved shanks. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD. | FamilyName | ECI-H4R-CF(relieved neck) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.5490
Name
Square & Corner Radius End Mills
FamilyName
ECI-H4R-CF(relieved neck)
BrandName
Iscar
