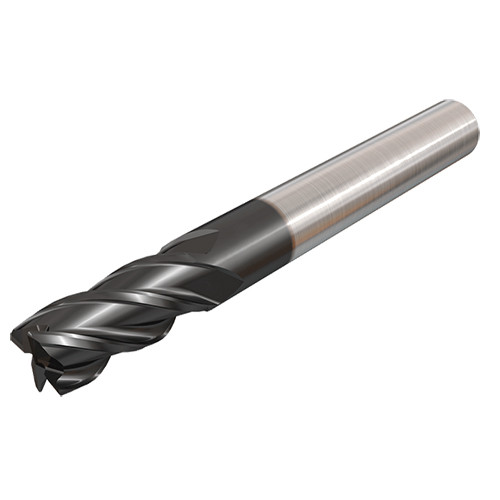

ECI-E-4R 313-625-C030 IC900
4 flute 38° helix medium length solid carbide endmills, with assorted radii.

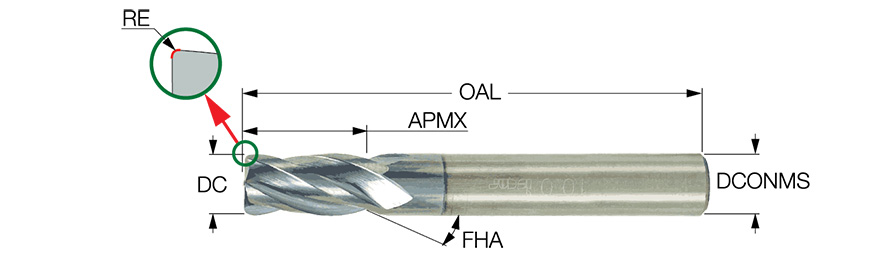

| Cutting Diameter (DC) | 0.313″ | Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | IC900 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.313″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
Product Features
| Family Description | 4 flute 38° helix medium length solid carbide endmills, with assorted radii. | FamilyName | ECI-E-4R |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0705
Name
Square & Corner Radius End Mills
FamilyName
ECI-E-4R
BrandName
Iscar
