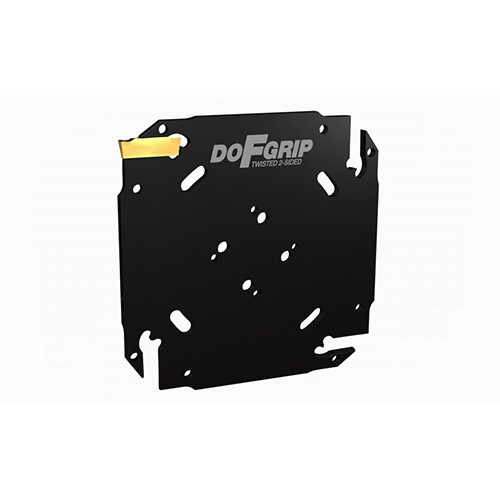

DGAQ D52-4-2Z-JHP
Parting and grooving square adapters with internal coolant holes carrying DO-GRIP inserts.
| Body Width (WB) | 3.2 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 4 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 52 mm |
| Cutting Width Maximum (CWX) | 4 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Overall Height (OAH) | 50 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Parting and grooving square adapters with internal coolant holes carrying DO-GRIP inserts. | FamilyName | DGAQ-JHP |
| Remarks | When using 2 and 3mm double-sided inserts, the depth of cut is limited up to 19mm. For larger depth, use a DGNM type single-ended insert. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1090
Name
Parting Off Indexable Holders
FamilyName
DGAQ-JHP
BrandName
Iscar
