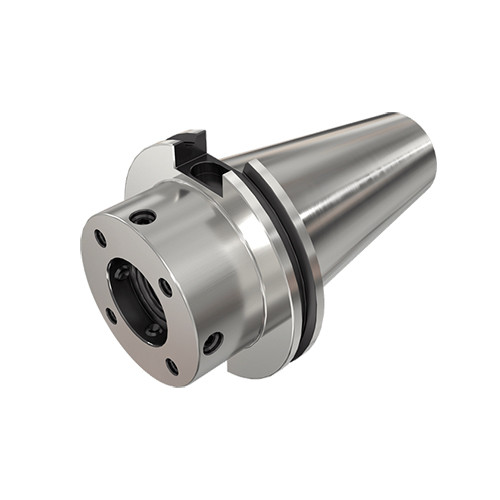

ADJ CAT40 D2.756
Center alignment shank and base with a caterpillar AD/B tapered shank. (Used for specially tailored tool holders).

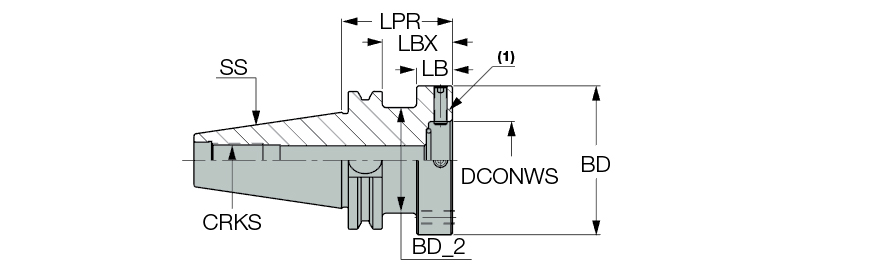

| Shank Size (SS) | 40 | Tool Type | Caterpillar |
| Protruding Length (LPR) | 1.969″ | Measurement Type | Inch |
| Body Length (LB) | 0.589″ | Body Material | Steel |
| Body Diameter (BD) | 1.752″ | Connection Code Machine Side (CCMS) | CAT |
| Connection Diameter Machine Side (DCONMS) | 40″ | Unit | I |
| Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
Product Features
| Family Description | Center alignment shank and base with a caterpillar AD/B tapered shank. (Used for specially tailored tool holders). | FamilyName | ADJ CAT |

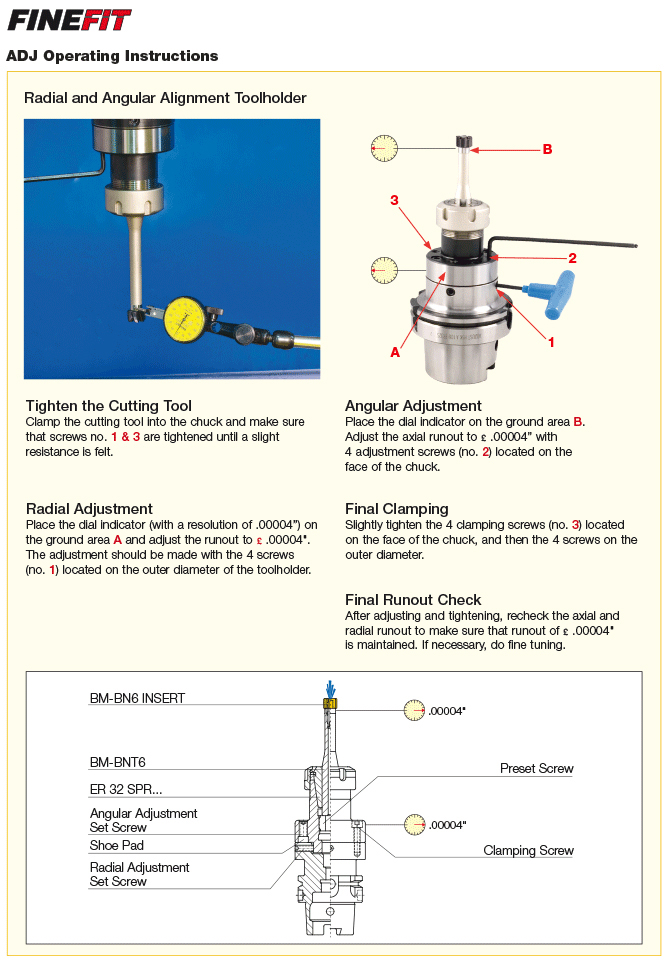

| Remarks | (1) Use 4 mm hex key for screw adjustment Add B to the designation for coolant through flange option | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.1967
Name
Drill Chucks & Adapters
FamilyName
ADJ CAT
BrandName
Iscar
