HSK A100 SRKIN10X160

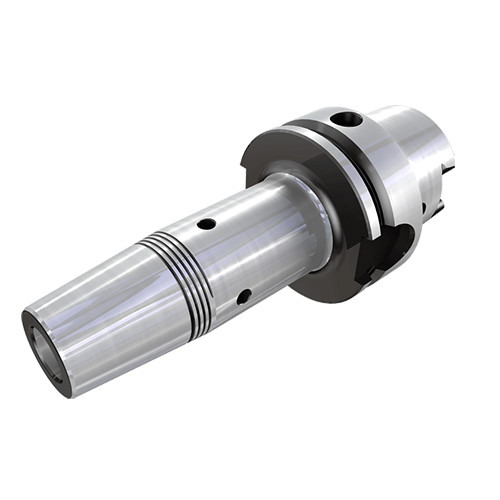

Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools.
| Connection Diameter Machine Side (DCONMS) | 100 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Tool Type | HSK |
| Shank Size (SS) | 100 | Body Material | Steel |
| Body Length (LB) | 51 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 160 mm | Unit | M |
| Overall Length (OAL) | 210 mm |
Product Features
| Family Description | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | FamilyName | HSK A-SRKIN |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.9360
Name
Shrink Fit Holders
FamilyName
HSK A-SRKIN
BrandName
Iscar
