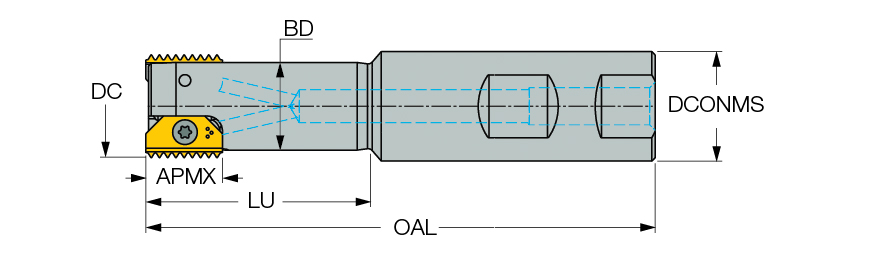

| Cutting Diameter (DC) | 30 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 21 mm | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 108 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Connection Code Machine Side (CCMS) | Weldon |

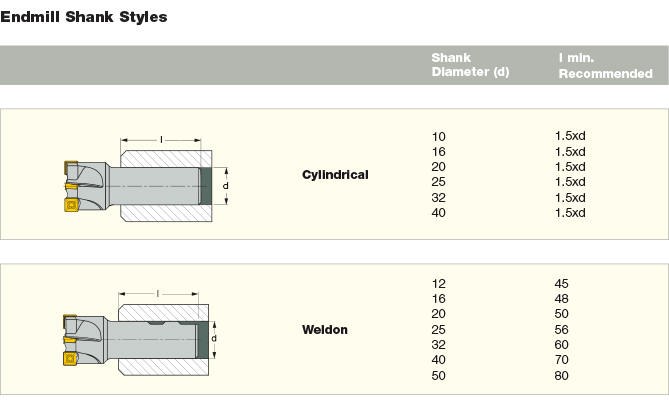

| Shank Type | Weldon | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Multi insert threading endmills with Weldon shanks. | COO | Israel |
| Remarks | For adaptation click on More Info. All endmills are equipped with a bore for internal coolant Tool cutting diameter should not exceed 2/3 of thread bore diameter |
Shipping Info
Weight per item
0.4790
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
