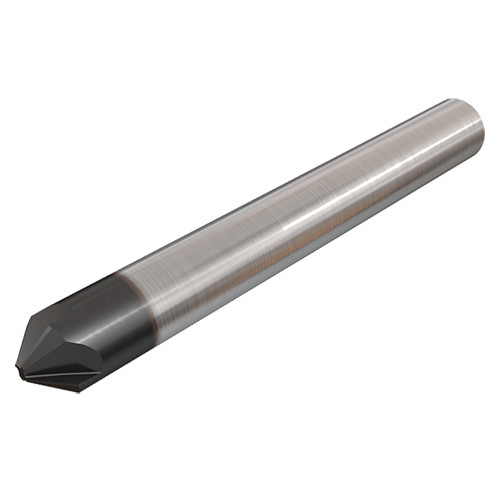

ECF D-1.5/45-4C04 IC900
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | AlTiN |
| Application | | Chamfering | Countersinking | Slanted Shoulder & Chamfer | | Grade | IC900 |

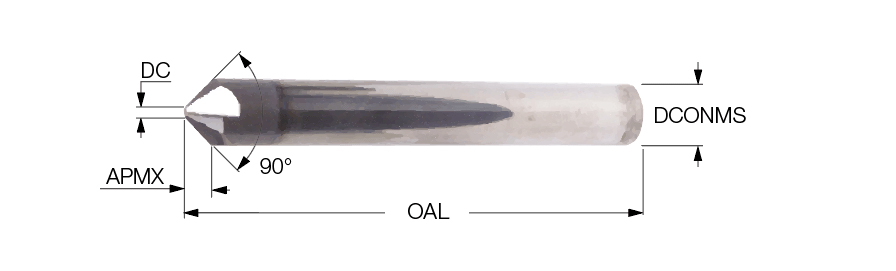

| Cutting Diameter (DC) | 1 mm | Shank Type | Round |
| Flute Count (NOF) | 4 | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 1.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | 45° chamfering and countersinking solid carbide endmills. | FamilyName | ECF../45°/60 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0120
Name
Chamfer Mills
FamilyName
ECF../45°/60
BrandName
Iscar
