ECD-S2 06/120C06-57 IC08

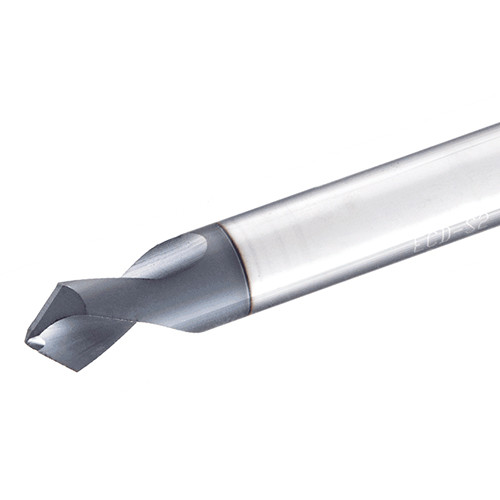

Two flute chamfering, countersinking and spot drilling s olid carbide endmills.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | | Chamfering | Countersinking | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Grade | IC08 |

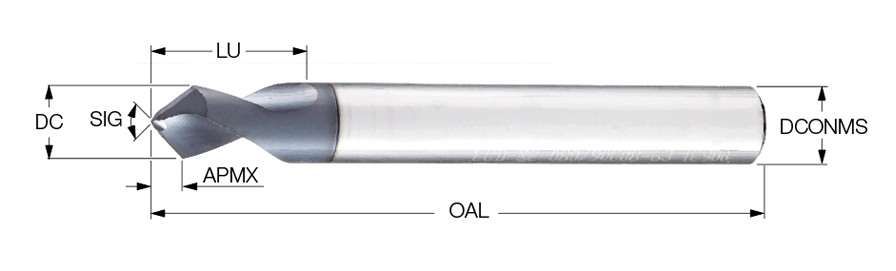

| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Usable Length (LU) | 12 mm | Tool Type | Solid chamfering endmills |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 1.54 mm | Body Material | Carbide |
| Overall Length (OAL) | 57 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Two flute chamfering, countersinking and spot drilling s olid carbide endmills. | FamilyName | ECD-S2 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0250
Name
Chamfer Mills
FamilyName
ECD-S2
BrandName
Iscar
