ETBI-R.123R10A50/20-4C500 IC902

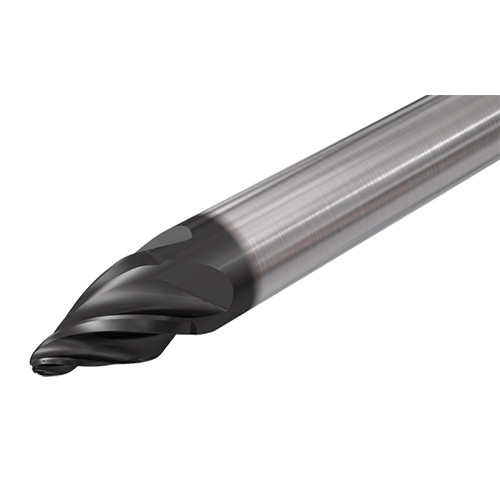

Solid carbide taper-shaped (Barrel) endmills for 3D profiling. Semi-finishing & finishing applications.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Profiling | | Grade | IC902 |

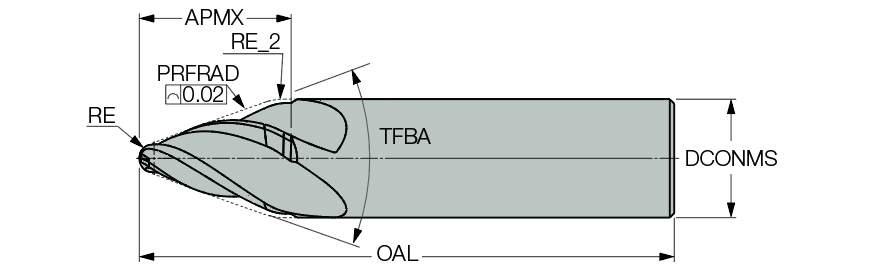

| Cutting Diameter (DC) | 0.231″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.55″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 3″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Unit | I |
Product Features
| Family Description | Solid carbide taper-shaped (Barrel) endmills for 3D profiling. Semi-finishing & finishing applications. | FamilyName | ETBI |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3395
Name
Tapered End Mills
FamilyName
ETBI
BrandName
Iscar
