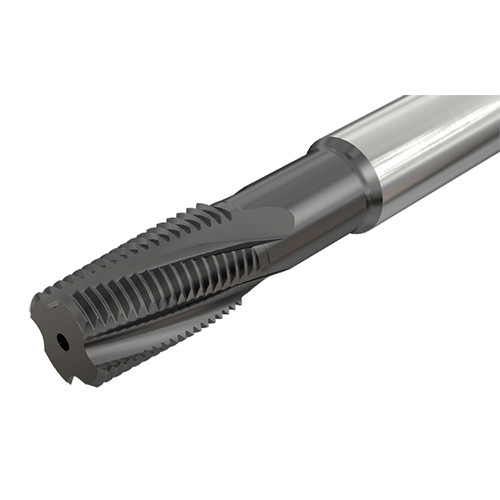

MTECQ 1010D30 1.5ISO IC908
Solid carbide threading endmills with internal coolant hole and a reduced diameter neck. Used for deep internal large pitch ISO thread profile (up to 3D) on medium and large thread diameters.

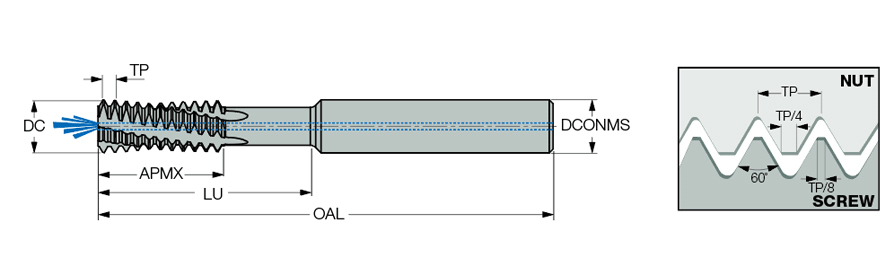

| Thread Pitch (TP) | 1.5 mm | Cutting Edge Material | Carbide |
| Thread Standard | MF |THFT | | Usable Length (LU) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 10 mm | Grade | IC908 |
| Overall Length (OAL) | 73 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 18 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid carbide threading endmills with internal coolant hole and a reduced diameter neck. Used for deep internal large pitch ISO thread profile (up to 3D) on medium and large thread diameters. | COO | Israel |
Shipping Info
Weight per item
0.0100
