MTEC 1212C24 11W IC908

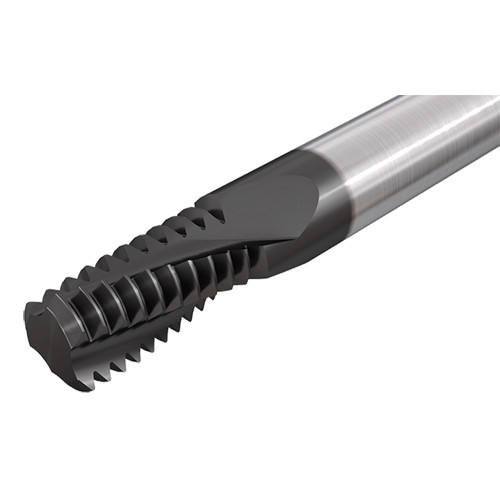

Solid carbide threading endmills used for internal or external BSF/BSP Thread Profiles

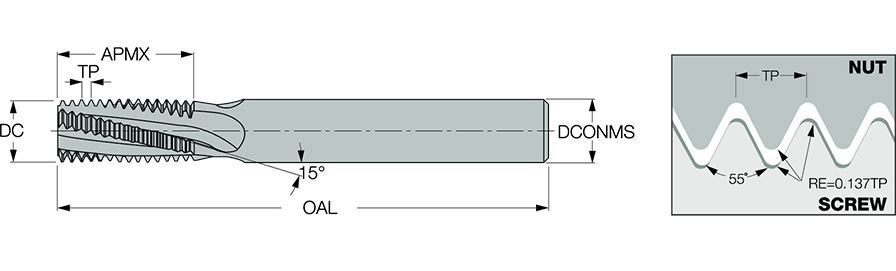

| Threads per Inch (TPI) | 11 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | BSP |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 12 mm | Grade | IC908 |
| Overall Length (OAL) | 84 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 24.2 mm |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | Solid carbide threading endmills used for internal or external BSF/BSP Thread Profiles | COO | Israel |
| Remarks | Internal & External tolerance: ISO 228-1 - Medium class |
Shipping Info
Weight per item
0.1230
