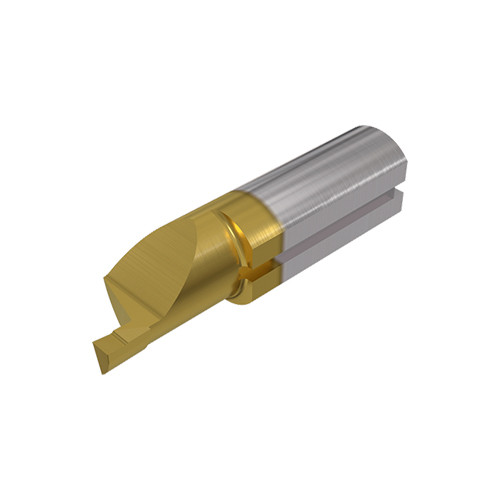

PICCO R 610.1008-20 IC228
Inserts for face grooving from Dmin 6 mm

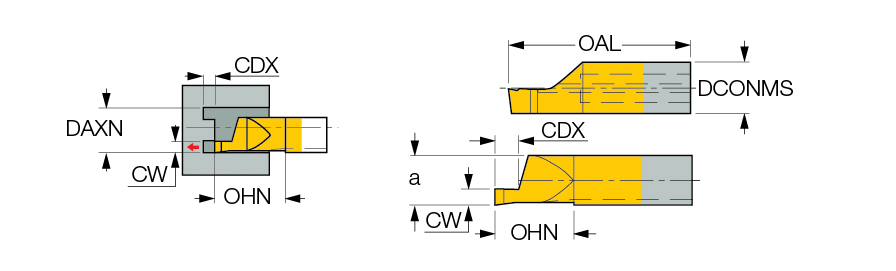

| Connection Diameter Machine Side (DCONMS) | 6 mm | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 1 mm | Max. Face Grooving Feed (ffg(max)) | 0.04 mm/rev |
| Cutting Depth Maximum (CDX) | 1.5 mm | Min. Face Grooving Feed (ffg(min)) | 0.01 mm/rev |
| Overall Length (OAL) | 35 mm | Axial Groove Outside Diameter Minimum (DAXN) | 8 mm |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 5.2 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 | Overhang Minimum (OHN) | 20 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Application | | Face Grooving | Int. Face Grooving | |
Product Features
| Family Description | Inserts for face grooving from Dmin 6 mm | FamilyName | PICCO-010/610 (Face Grooving) |
| Remarks | Only right-hand inserts are available as standard All inserts are with sharp corners | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0130
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICCO-010/610 (Face Grooving)
BrandName
Iscar
