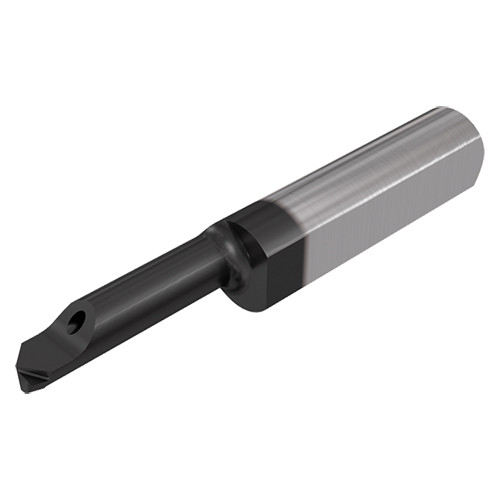

PICCO LM050.25-10 IC909
Inserts with sharp corners for internal precision and high surface quality turning and profiling. Designed mainly for machining medical parts.

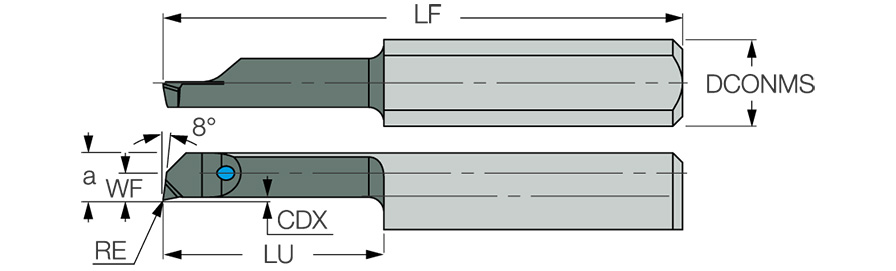

| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.02 mm | Application | | Int. Boring and Profiling | |
| Cutting Depth Maximum (CDX) | 0.1 mm | Tool Type | Solid, Turning & Grooving |
| Overall Length (OAL) | 24 mm | Minimum Bore Diameter (DMIN) | 2.5 mm |
| Cutting Direction (HAND) | Left Hand | Front End Width (a) | 2.2 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCrVN | Body Material | Carbide |
| Grade | IC909 | Unit | M |
Product Features

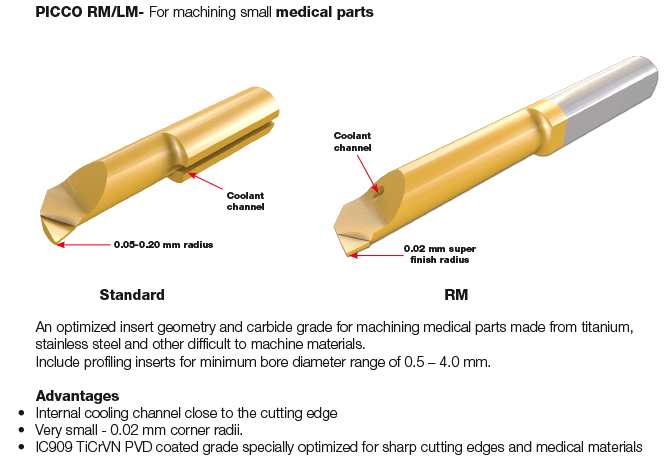

| Family Description | Inserts with sharp corners for internal precision and high surface quality turning and profiling. Designed mainly for machining medical parts. | FamilyName | PICCO R/LM |
| Remarks | An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to machine materials. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0070
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICCO R/LM
BrandName
Iscar
