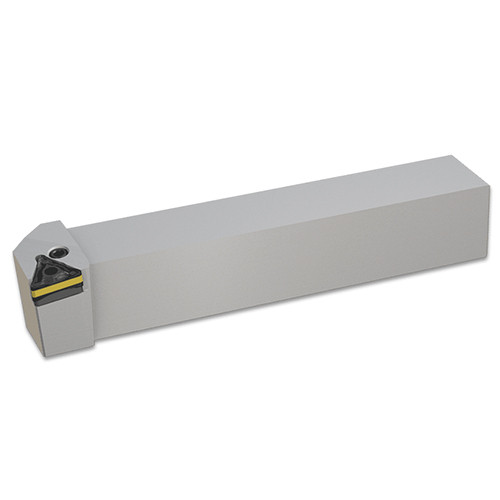

PTGNL 2525M-22X
91° lead angle lever lock external turning tools carrying negative triangular inserts.

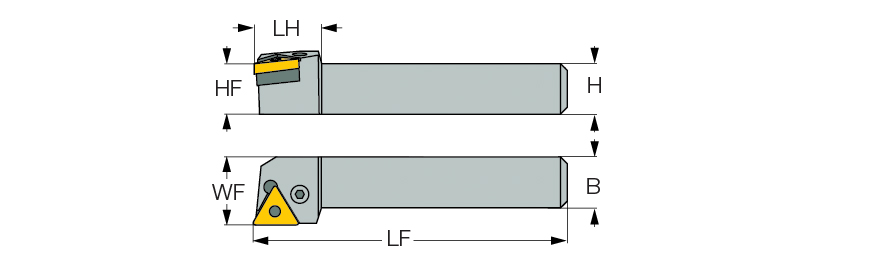

| Shank Height (H) | 25 mm | Application | | Ext. 60° Triangle 91° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | TNMX 2207, TNMG 2204 |
Product Features
| Family Description | 91° lead angle lever lock external turning tools carrying negative triangular inserts. | FamilyName | PTGNR/L-X |

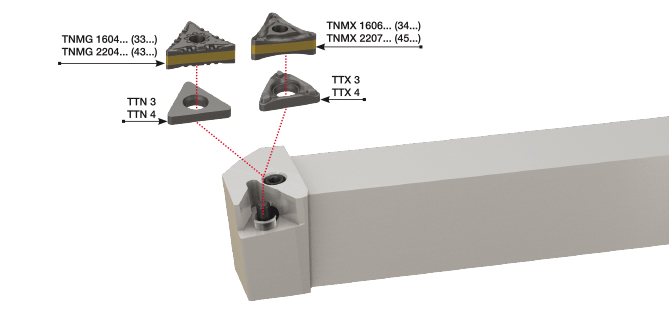

| Remarks | Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7880
Name
General Indexable Turning Tools
FamilyName
PTGNR/L-X
BrandName
Iscar
