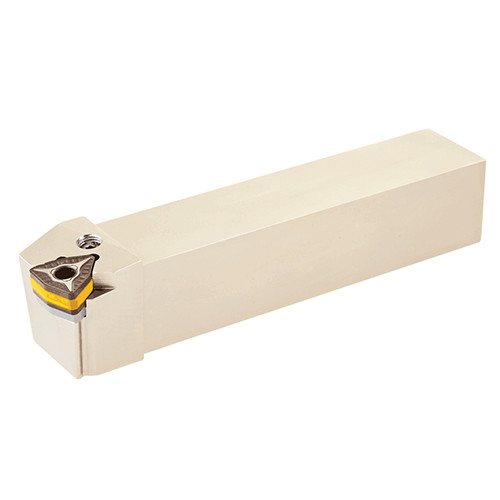

PWXOR 16-5-TF-IQ

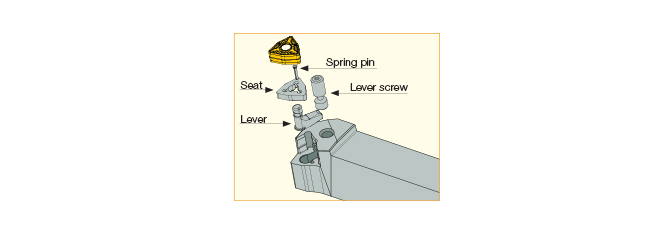

Lever-lock tools for fast feed at small D.O.C. longitudinal turning.

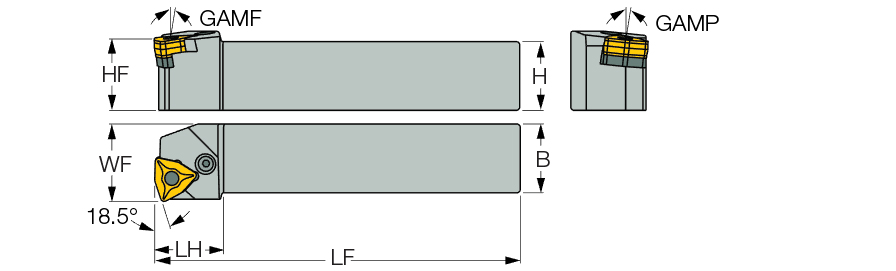

| Shank Height (H) | 1″ | Master Insert Identification (MIID) | WOMG 55-IQ |
| Shank Width (B) | 1″ | Application | | Ext. Trigon 18.5° Approach | |
| Overall Length (OAL) | 6″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 1-1/4″ | Body Material | Steel |
| Functional Width (WF) | 1.2″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features
| Family Description | Lever-lock tools for fast feed at small D.O.C. longitudinal turning. | FamilyName | PWXOR/L-TF-IQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.7791
Name
General Indexable Turning Tools
FamilyName
PWXOR/L-TF-IQ
BrandName
Iscar
