| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60ֲ° Triangle 60ֲ° Approach | Ext. 60ֲ° Triangle 91ֲ° Approach | Ext. 60ֲ° Triangle 93ֲ° Approach | Ext. 60ֲ° Triangle Facing | Int. 60ֲ° Triangle 91ֲ° Approach | Int. 60ֲ° Triangle 95ֲ° Approach | | Min D.O.C. | 1 mm |
| Insert Style | TNMG | Depth of Cut Maximum (APMX) | 3 mm |

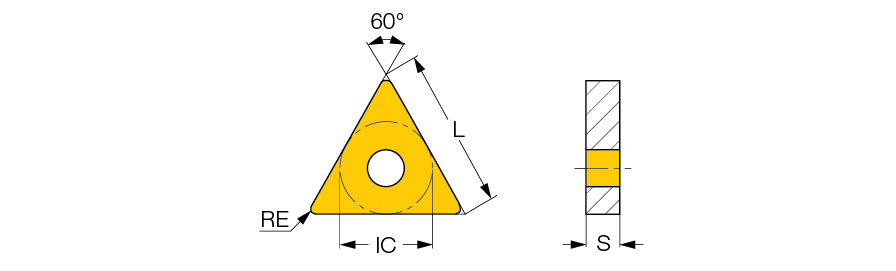

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.12 mm/rev |
| Insert Size | 160408 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | TF |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC907 |
Product Features

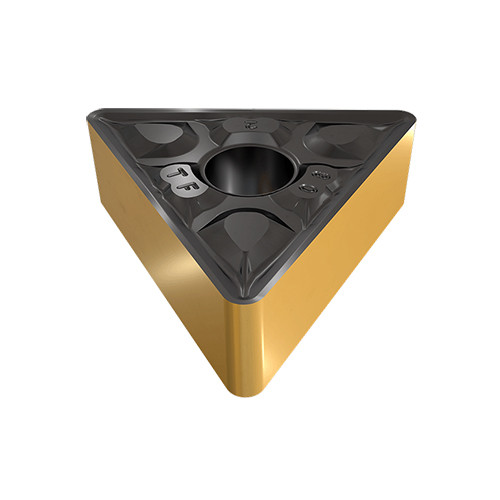

| Family Description | Double-sided, triangular insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. | FamilyName | TNMG-TF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0085
Name
Turning Indexable Inserts
FamilyName
TNMG-TF
BrandName
Iscar
Harmonized code
8209000030
