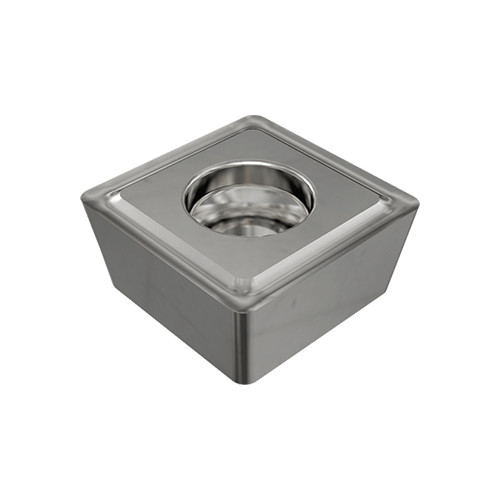

SOMX 050204-GF IC908
Inserts with a GF chipformer for soft materials, used at low-to-medium feeds on DR drills.

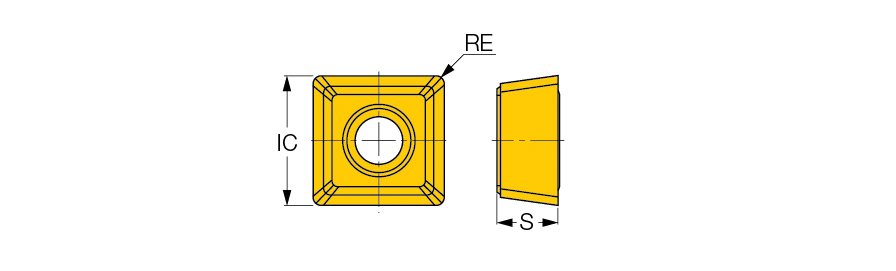

| Insert Thickness (S) | 2.4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 5.4 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Indexable drilling inserts |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Application | | Drill Mill | Drilling | | Unit | M |
Product Features
| Family Description | Inserts with a GF chipformer for soft materials, used at low-to-medium feeds on DR drills. | COO | Israel |
Shipping Info
Weight per item
0.0020
