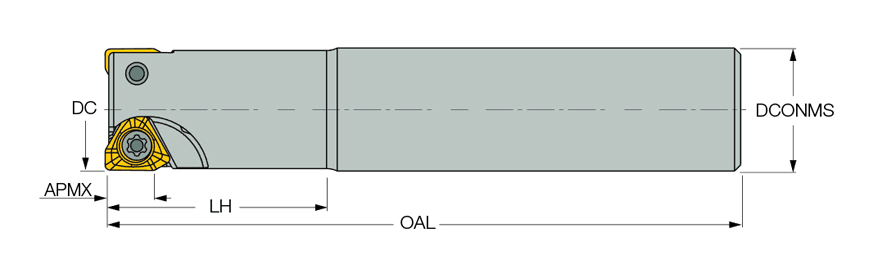

| Cutting Diameter (DC/DCX) | 8 mm | Functional Length (LF) | 60 mm |
| Cutting Diameter (DC) | 8 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 1 |
| Depth of Cut Maximum (APMX) | 3.5 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 60 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Diameter Maximum (DCX) | 8 mm |
| Master Insert Identification (MIID) | HM390 TPKT 0502PDR | Unit | M |
| Head Length (LH) | 14.9 mm |
Product Features

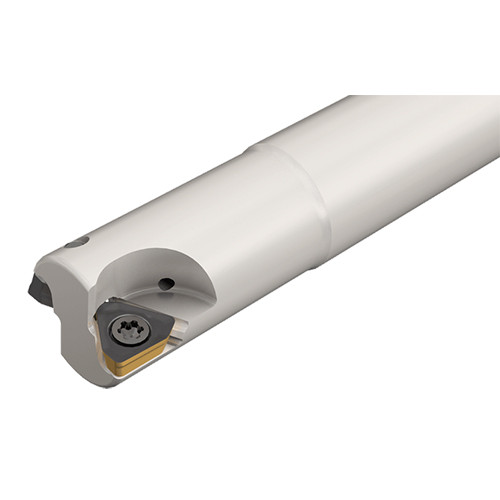

| Family Description | 90° endmills carrying HM390 TPKT 0502 triangular inserts with 3 helical cutting edges. | FamilyName | HM390 ETP-05 |
| Remarks | Tightening torque 0.5 N*m | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0640
Name
Indexable End Mills
FamilyName
HM390 ETP-05
BrandName
Iscar
