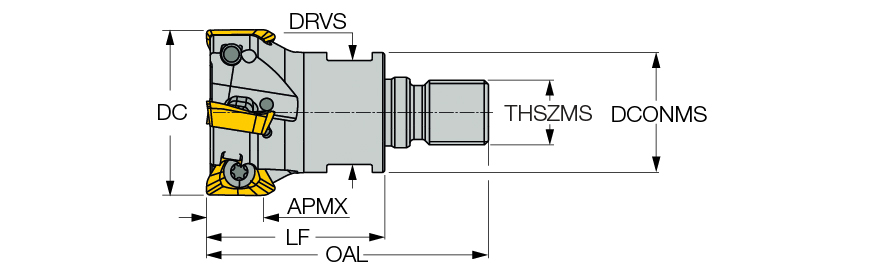

| Cutting Diameter (DC/DCX) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 25 mm | Drive Size (DRVS) | 17.1 mm |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 57 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.9 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TPKT 100304PDR | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 35 mm | Unit | M |
| Tool Type | 90° indexable endmills |
Product Features

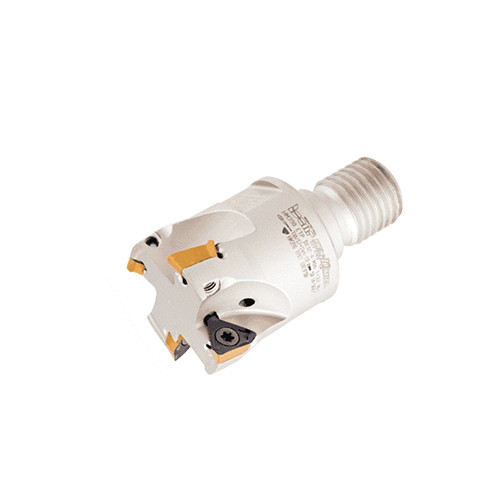

| Family Description | 90° endmills with a FLEXFIT threaded adaptation carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges. | FamilyName | HM390 ETP-M |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info For inserts with a corner radius larger than 1.6mm, tools must be modified, formula: R body's corner = R insert + 0.5 mm. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1790
Name
Indexable End Mills
FamilyName
HM390 ETP-M
BrandName
Iscar
