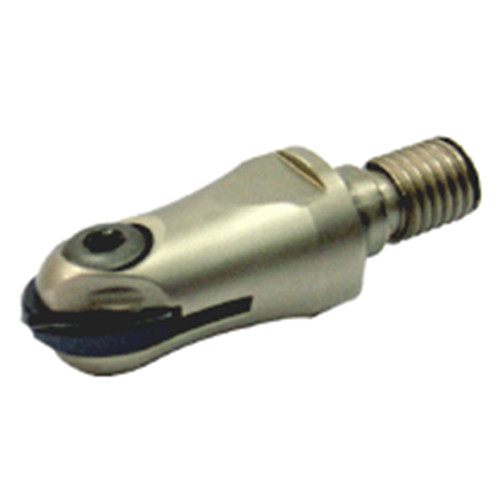

HCM D25/1.0-M12
Ball nose multifunction endmills with FLEXFIT threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries.

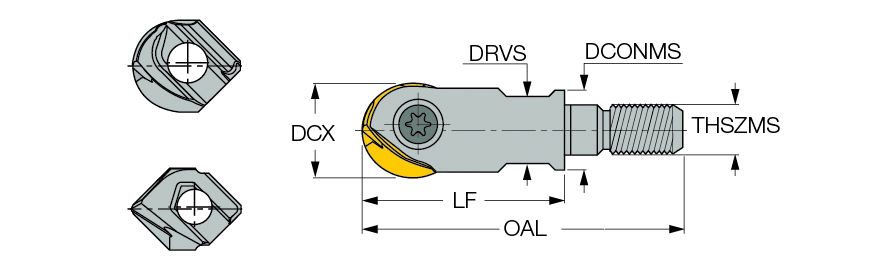

| Cutting Diameter (DC/DCX) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 25 mm | Drive Size (DRVS) | 19 mm |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.98 mm | Torque (TQ) | 12 Nxm |
| Overall Length (OAL) | 68 mm | Corner Radius (RE) | 12.5 mm |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Countersinking | Drill Mill | Profiling | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 23 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | HBR D250-QF | Body Material | Steel |
| Functional Length (LF) | 46 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
| Tool Type | Ball nose endmills | Unit | M |
Product Features
| Family Description | Ball nose multifunction endmills with FLEXFIT threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries. | FamilyName | HCM-M |

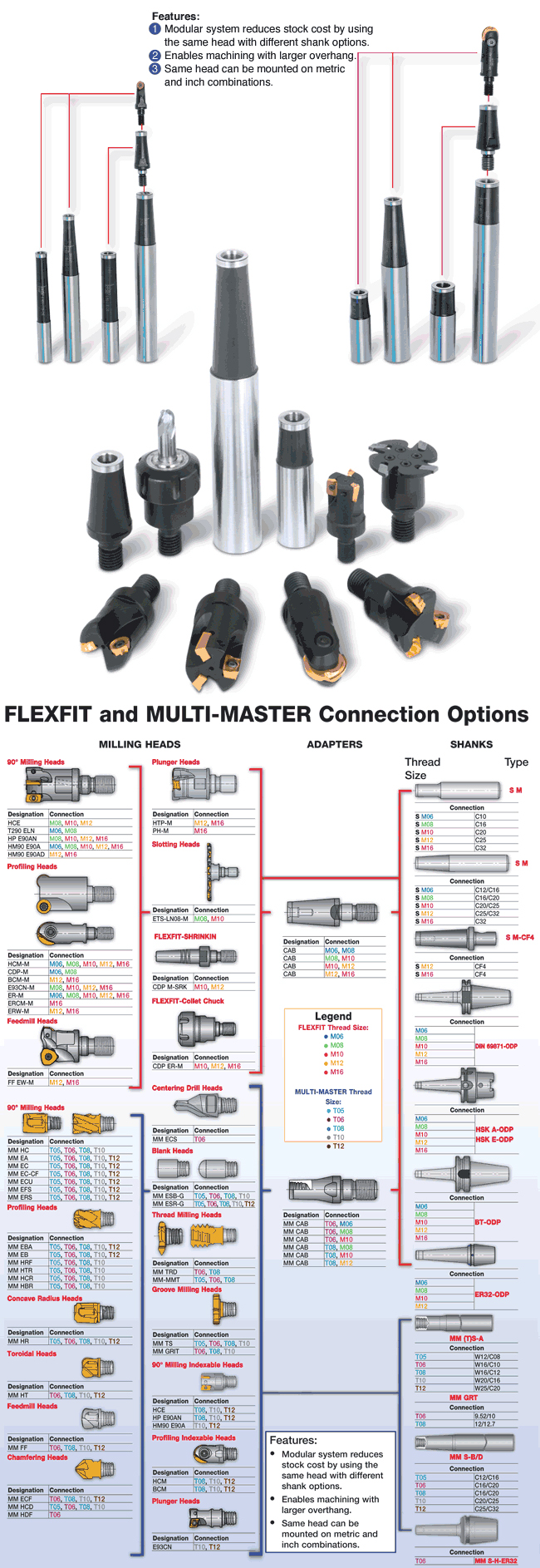

| Remarks | The dimensions are for HBR inserts For adaptation click on More Info When mounting items with FLEXFIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2110
Name
Indexable End Mills
FamilyName
HCM-M
BrandName
Iscar
