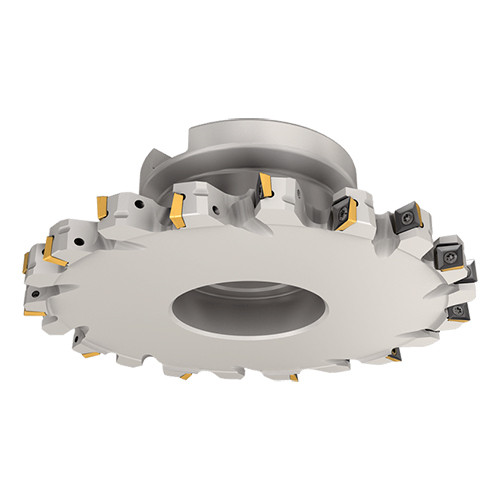

FDN D160-16-40-R12
HELIQUAD, Full slot, flange-type slotting cutters.

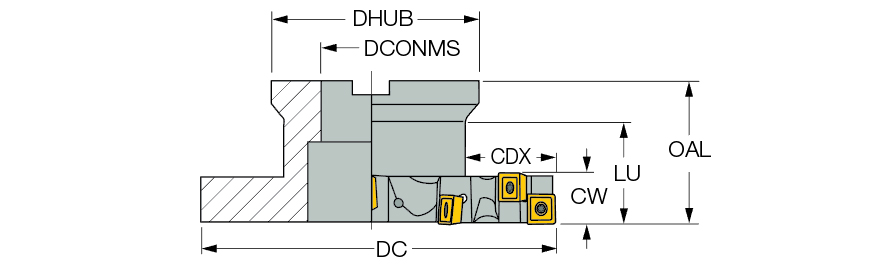

| Cutting Diameter (DC) | 160 mm | Overall Length (OAL) | 60 mm |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | QDMT 1205PDN-RM |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |

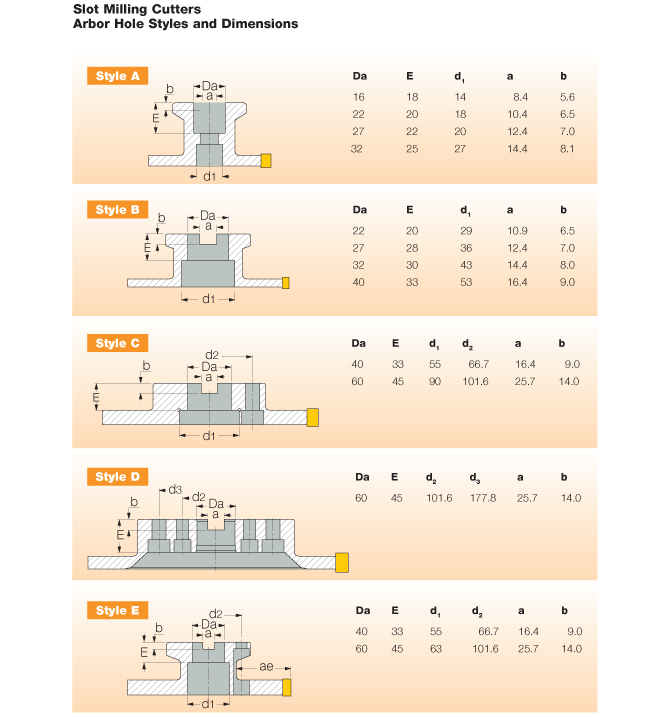

| Depth of Cut Maximum (APMX) | 16 mm | Arbor Style | B |
| Cutting Depth Maximum (CDX) | 46.9 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 80 mm | Measurement Type | Metric |
| Usable Length (LU) | 43.5 mm | Body Material | Steel |
| Flute Count (NOF) | 14 | Unit | M |
Product Features
| Family Description | HELIQUAD, Full slot, flange-type slotting cutters. | FamilyName | FDN |
| Remarks | For fully effective conditions, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.3550
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN
BrandName
Iscar
